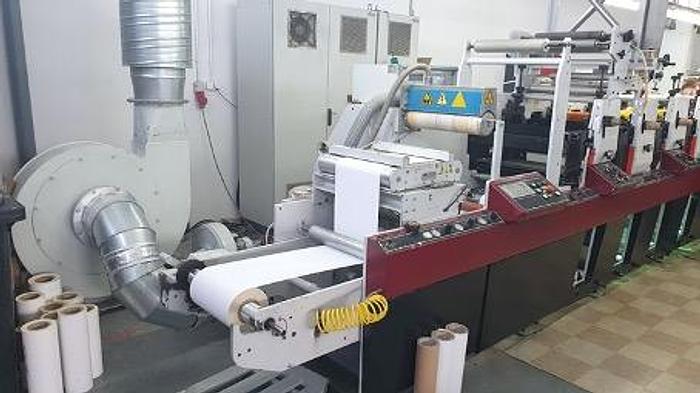

Mark Andy LP3000

Mark Andy LP3000

Specifications:

year: 2004

6 colors

17 inch (438 mm) print width

Crown Softal

Double die cutter, magnet crane

Sheeting station

Openwork rewinder

DS print inspection camera. KE1000 system (purchased in 2019)

Shear drive teeth

Laminator with a nip roll

Cold stamping unit.

Tools as per specification below:

Tool List:

Anilox Rolls 19 pieces by Harper (2 or 3 not used yet)

Magnetic rollers and printing rollers

Dentistry Magnetic printing roller

80 0 6

84 1 6

88 0 6

96 1 6

104 1 6

108 0 6

112 1 6

118 0 4

120 1 6

126 1 6

136 1 6

144 1 6

Varnish roller 88z

6 squeegee sets

10 inkwells

A washer with a pneumatic pump for cleaning inkwells

Manual gluing machine for polymer plates

Additional information:

Catalog specification:

Unwind Capacity 40 in (1016 mm) max

Print Repeat 5.5 - 24 in (140 - 610 mm)

Die Repeat 24 in (610 mm) max

Rewind Capacity 40 in (1016 mm) max

Max Speed ​​750 fpm (230 mpm)

Width 17 in (430 mm)

The user carried out inspections on an ongoing basis and replaced the used parts with new parts of the manufacturer.

In 2016, a general renovation was carried out by the manufacturer's authorized service.

In the previous month, we performed a service inspection of UV lamps, as a result of which all mirrors in the lamps and motors in the covers were replaced.
