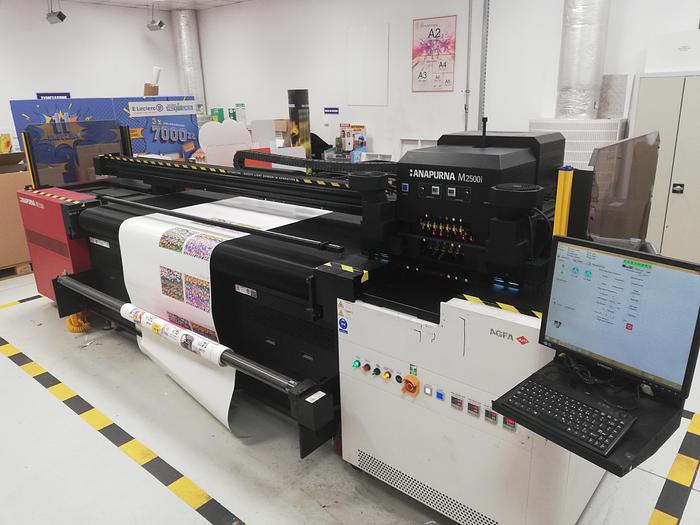

Agfa Anapurna M2500i hybrid UV-curable inkjet system

Agfa Anapurna M2500i hybrid UV-curable inkjet system

Contact us for price

orCall +359 886 155718

Description

Rigid media:

Media and printing specifications:

  • max width: 250 cm
  • max width with borderless printing: 247 cm
  • max length: supported by 1 rigid roller table: 140 cm
  • max length: supported by 1 rigid roller table + media extension table: 320 cm
  • min size: A2 landscape (60 x 42 cm)
  • min thickness: 1 mm
  • max thickness: 45 mm
  • max weight: 10 kg/m2 on printing table


Flexible media:

  • max width: 250 cm
  • max lenght: restricted by weight and diameter
  • thickness: min 0.2 mm
  • max wight: 50 kg
  • max roll outside diameter: support for 3" core-media rolls with maximum outside diameter 36 cm
  • borderless flexible printing: 247 cm


Productivity:

  • draft mode: up to 115 m2/h
  • express mode: 70-78 m2/h
  • production mode: 35-57 m2/h
  • standard quality mode: 21-31 m2/h
  • high quality mode: 16-17 m2/h


Print heads and inks:

Print heads:

  • 6 Konika-Minolta KM1024i heads: 1024 nozzles/head with a douplet volume of 12 pI (colors)
  • 2 Konika-Minolta KM1024i heads: 20 pl (white in line)

Inks:

  • CMYKLcLm + white


Image & Text quality:

  • High-quality prints: up to 720 x 1040 dpi
  • Text quality: Positive: 4 points / Negative: 6 points


Engine weight & Dimensions:

177 x 500 x 160, 2200 kg


SUBSTRATE DIVERSITY

Material widths up to 250 cm
Print width up to 249 cm
Print without margins, up to 250 cm wide
Printing on two or more sides at the same time Size min: A2, horizontal
Material thickness up to 45 mm
Material weight up to 10 kg / m^2
Includedl 4 tables for rigid materials (2 front and 2 rear).
Material handling up to 3.2 m in length
Roll diameter up to 36 cm

Benefits
Reinforced structure
A rail for the automated positioning of rigid media mounted on the table
A vacuum table divided into 4 zones
1.5 kW vacuum pump built into the device
Precise transport mechanism
High power of the carriage drive motor
Automatic vacuum control (inverter)
Ionizer bar removing electrostatic charges from the printed substrate on both sides of the carriage
Safety sensors on both sides of the carriage
Enlarged support frame for mounting the pump
Media transport black belt
Network and USB 2.0 connection
Touch screen controller integrated with the device
 7 UV-cured inksAnapurna M G2 UV - (CMYKLcLm and White)

HEADS
6 Konica-Minolta heads 1024 nozzles with a drop of 12 pl (colors)
2 Konica-Minolta heads 1024 nozzles with a drop of 42 pl (white)
IMAGE QUALITY
Express mode - 60 m2 / h
Production mode - 30 m2 / h
Standard mode - 18 m2 / h
High quality mode - 9 m2 / h
Highest quality mode - 8 m2 / h

TEXT QUALITY
Positive: from 4 points
In negative: from 6 points




Specifications

ManufacturerAgfa
ModelAnapurna M2500i
Year2015
ConditionUsed
Stock Number883940
