YAWA PRO F160 HOT-FOIL DIE-CUTTER

YAWA PRO F160 HOT-FOIL DIE-CUTTER

Contact us for price

orCall +359 886 155718

Description

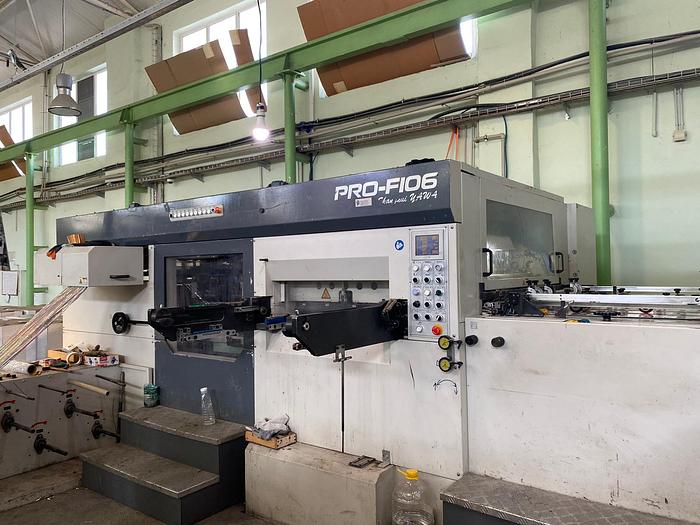

YAWA PRO F106 die-cutter with hot-foil and hologram

- Year: 2012;

- Maximum sheet size 1060 x 750 mm;

- Minimum sheet size 450 x 390 mm;


Stock Range:

- Minimum weight: 150 gsm;

- Maximum weight: 2000 gsm;

- Maximum corrugated: 3 mm;

- Minimum margin 4 mm;


Hot-foil stamping specifications:

- Foil unwinder 6 longitudinal;

- Max foil roll diameter: 250 mm;

- Foil roll core 1”/3”;

- Maximum stamping size: 1020 x 720 mm;

- Maximum Stamping speed: 7,000 s/h;

- Minimum foil width: 15 mm;

- Heating zones: 12;

- Temperature: 0-180°C;

- Heating Capacity: 25 kw;


Die-cutting specifications:

- Maximum cutting size 1040 x 730 mm;

- Inside Chase size 1120 x 760 mm;

- Maximum Pressure 300 tons;

- Maximum speed 7,500 s/h;


Equipment and specifications:

- Feed pile height: 1350 mm;

- Non-stop delivery pile height: 1150 mm;

- Non-stop delivery height: 80 mm;

- Main Motor: 11kw;

- Additional Motors: 9 kw;

- Total: 42 kw;

- Power Supply 400V/50Hz/3 Ph PE ,

- Air supply 1.0 MPA, 0.6CBM/min ,


Dimensions:

L/W/H: 6000/6000/2450 mm ,

Total weight approx 22 tonnes

Specifications

ManufacturerYAWA
ModelPRO F160
Year2012
ConditionUsed
Stock Number883934
