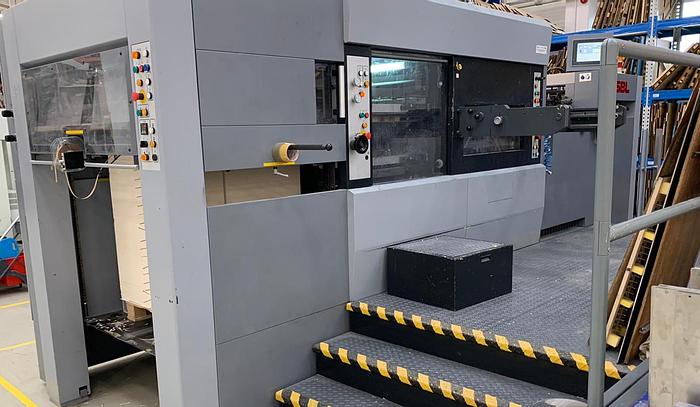

Die cutting SBL 1050 SEA STRIPPING 2015 year model

Die cutting SBL 1050 SEA STRIPPING 2015 year model

Contact us for price

orCall +359 886 155718

Description

Die cutting SBL 1050 SEA STRIPPING 2015 year model

The machine is designed for die cutting, creasing

This model is with stripping section;

Max. sheet size 1050 x 750 mm;

Min. sheet size 400 x 370 mm

Thickness of paper, cardboard/corrugated Board 0,1-2/ 4 mm;

Max. cutting force 300 tons;

Max. technical speed 8000 sheets./hour;

Dimensions (L x W x H): 4620 x 3830 x 2025 mm;

Weight 15000 kg;


Stream feeder with Non Stop system;

Device synchronization and deceleration of the sheet at the approach to the front stops;

Two-sheet detector;

Die-cut section of reinforced construction;

Pushing guide;

Mechanical clamp for stamp and die plate;

Adjusting the die cut pressure from the touch panel;

Devices for working with a wide range of material thicknesses from thin paper to B type corrugated cardboard;

Device for braking the sheet and laying the air jet on the output device;

High-pile delivery with Non-Stop system.

Specifications

ManufacturerDie cutting SBL 1050 SEA STRIPPING 2015 year model
ModelSBL 1050 SEA
Year2015
ConditionUsed
Stock Number883932
