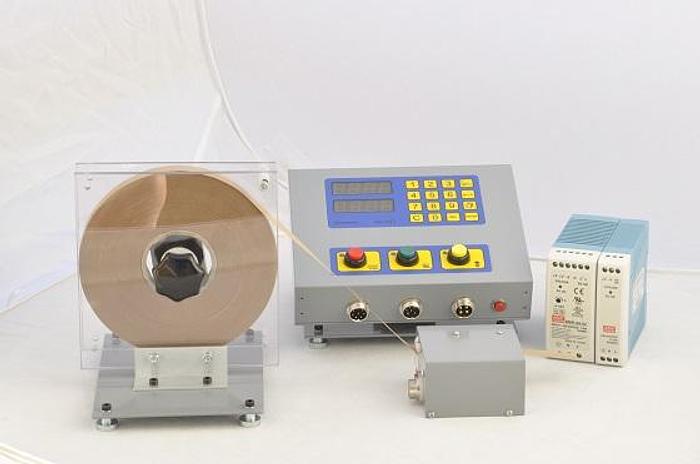

Modus MTI-15 tab inserter

ATI-15 operator interface

 Maximum package : up-to 1 000 000

 Range of package meter : 9 999 999

 Accurate and reliable counting of preset packages

 Correction of counting when removing sheets to control – demountable sheets button

 Easy setting of the keyboard

 Programmable delay in cutting

 Programmable length of tape

 Programmable packet size

 Easy configuration of the device:mode – active or passive START/STOP

 mode – correction of sheets removed for inspection by pressing the button or setting

 mode – total count or modulo

 mode – single or double step cutting

 mode – fire delay

 Automatic insert synchronisation

 Easy to read packet size setting display

 Easy to read package meter display

 Programmatic limit of the tape length up to 50 cm

 Preserving the settings memory and the counted sheets in the case of a power breakdown

 Dimensions 190 x 155 x 40 mm

Features and characteristics of the HTI-15 head

 Operation with machines up to 20000 sheet per hour

 Mounting the head inserting the tape on:

 Side plane

 Swivel arm

 Stiffening tape shaping during offset

 Self-cleaning sliding roller

 Also works with waxed paper

 Dimensions 75 x 75 x 45 mm

Characteristics of the CTI-15 tape cartridge

 Marking tape width -14 mm

 External diameter of tape – 150 mm

 Internal diameter of tape – 50 mm

 Capacity of tape roll – 200 m – 2000 separators 10 cm long

 Brake preventing uncontrolled tape unreel
