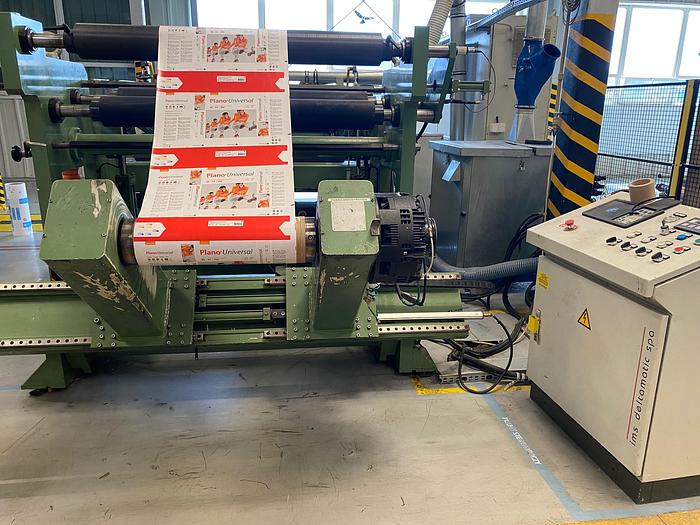

IMS DELTAMATIC SPA GM3 1300MM - slitter/rewinder 600/MPM

Sold

IMS DELTAMATIC SPA GM3 1300MM - slitter/rewinder 600/MPM

Description

Technical datas


General characteristic

- printed stock - paper 60-350 g/m2

- maximum width of the unwinded roll - 1300 mm

- maximum speed - 600 m/minute - can vary depends of type and quality of material

- non motorised aluminium rolls, exactly sustainable statically and dynamically, with the diameter around - 150 mm

- transmission side - right

- operator side - right

- color of the press - green RAL 6001

- color of the electric cabin - grey RAL 7035


Unwinder without core

- maximum diameter unwinding - 1300 mm

- inside diameter of the core - 76/152 mm

- maximum weight of the roll - 1300 kg

- minimum width to mount the roll - 600 mm

- axial alignment feed on rolling gears equal - +/- 50 mm


Cutting unit

Unwinding cut

- counter knives shaft diameter - 90 mm

- counter knives with the outer diameter - 105 mm

Circular knife holder guide

- knives with an outer diameter - 90 mm

- minimum width of the cut - 50 mm


Winder

- maximum width of winding - 1300 mm

- inside diameter of the cores - 76/152 mm

- maximum tension with maximum diameter - 700 N

- maximum tension with diameter +/- 200 mm - 150 N

Specifications

ManufacturerIMS DELTAMATIC
ModelSPA GM3
Year2007
ConditionUsed
Stock Number88366
