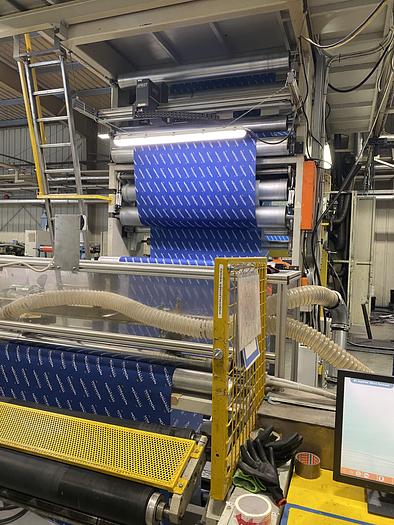

2001 TIQUATTRO STOCK 1600mm width / 6color

2001 TIQUATTRO STOCK 1600mm width / 6color

Contact us for price

orCall +359 886 155718

Description


manufacture                               TIQUATTRO ENGINEERING - Italy

manufacture year             2001

model                           STOCK 1600/6

number                         000135


number of printing decks              6

groups locking                           hydraulic

printing width                           1600 mm

maximum web width                  1650  mm

printing repeat length                 390-1200mm

gear pitch                                  10 mm

mechanical speed            200 m/min


anilox cylinder                           ceramic laser engraved

anilox cylinder diameter              149,500 mm

standard inking with chambered doctor blade           6

number ink pneumatic pumps                   6

inks type                                   solvent , water

cliché thickness                          photopolymer 1,14-2,84mm + adhesive tape

horizontal register                       manualy

horizontal register range               +/- 10 mm

longitudinal register                    motorised on all colours

longitudinal register range            +/- 10 mm


drying system                            electrical

reels diameter unwinder               1200 mm

reels diameter winder                   1200 mm

cores diameter                            6" , 3" , 70mm, 100mm, 120mm

video camera to control the printing           BST

automatic edge-guide before winding          FIFA

Materials to be printer Paper and plastic films for flexible packaging


Compressed air

           *feeding pressure 6 bar

           *consumed quantity        130 Nm3/h


Equipment of Tiquattro

Anilox

Lp.

NR

LINIATURA [L/cm]

Transfer ink [cm3/m2]









1

84538

160

8

2

84537

120

12

3

4

160

8

4

38951-1

120

12

5

38951-2

120

12

6

7

120

12

Print Sleeves

Kind - sleeve, steel shaft, mandrell, adapter

repeat lenght

mandrell size

Printing plate thickness

quantity [pcs]

sleeve

390

111.525

2.54

2

sleeve

400

111.525

2.54

3

sleeve

410

111.525

2.54

2

sleeve

410

117.891

2.54

1

sleeve

420

111.525

2.54

1

sleeve

420

121.074

2.54

3

sleeve

460

136.989

2.54

38

steel printing shaft

480





6

sleeve

490

136.989

2.54

4

sleeve

500

136.989

2.54

3

sleeve

510

136.989

2.54

4

sleeve

510

149.722

2.54

2

steel printing shaft

520





6

sleeve

520

149.722

2.54

4

sleeve

560

149.722

2.54

4

sleeve

580

149.722

2.54

3

steel printing shaft

600





11

sleeve

630

184.736

2.54

2

sleeve

640

184.736

2.54

4

steel printing shaft

650





6

sleeve

680

184.736

2.54

4

steel printing shaft

700





6

sleeve

700

184.736

2.54

2

steel printing shaft

750





6

sleeve

760

226.116

2.54

1

sleeve

780

235.665

2.54

7

steel printing shaft

800





6

sleeve

840

235.665

2.54

2

sleeve

900

235.655

2.54

1

sleeve

920

270.430

2.54

2

sleeve

1000

308.627

2.54

3

sleeve

1020

308.627

2.54

5

sleeve

1050

308.627

2.54

2

sleeve

1080

308.627

2.54

2

mandrell



108.342



2

mandrell



111.525



4

mandrell



149.722



8

mandrell



117.891



4

mandrell



136.989



4

mandrell



184.736



6

mandrell



270.430



2

mandrell



152.905



3

mandrell



226.116



4

mandrell



235.665



4

mandrell



305.444



2

mandrell



308.627



2










Specifications

ManufacturerTIQUATTRO
ModelSTOCK 1600/6
Year2001
ConditionUsed
Stock Number88366
