2008 ESC High Press 780 Model 1 with UV Tunnel and Stacker

Age: 2008

Max.Size: 78 x 52 cm (30 x 20 inch)

Current State: In production

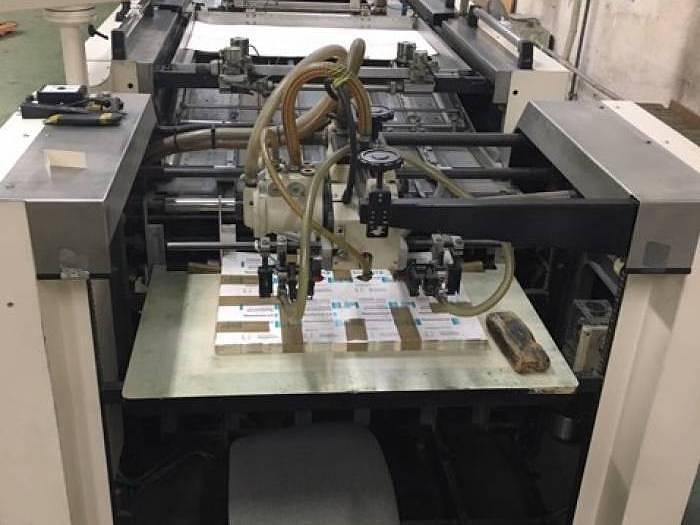

ESC HIGH PRESS 780 Model 1 with UV Tunnel and Stacker

Year: 2008

ESC HIGH PRESS 780 Model 1 specifications:

- Year: 2008

- Max printing size: 520 x 780 mm

- Max screen size: 540 x 780 mm

- Min screen size: 270 x 350 mm

- Cylinder holders: 10

- Screen printing frame dimension: 940 x 940 mm

- Squeegee angle adjustment range: 30 degrees

- Adjustment range for fit: ±10

- Max speed depending on the type of substrate: 3300

- Power: approx. 7kW / 400V / 50 Hz

- Dimensions: 3100 x 1500 x 1300, 3800 kg

UV Tunnel SUV specifications:

- Tunnel length: 300 cm

- The length of the trailing table: 110 cm

- Tunnel width: 127 cm

- Tunnel height: 170 cm

- Conveyor height: 80-97 cm

- Curing zone width: 105 cm

- Conveyor width: 112 cm

- Conveyor speed adjustment: 0-60 m/min

- Length of the overlap zone: 185 cm

- Length of the pickup area: 95 cm

- Supply voltage: 3 x 400 V / 50 Hz

- Maximum phase current: 40 A

- Linear power of the UV lamp three ranges W / cm: 50, 80, 120 W/cm

- Lamp power consumption 100% range 1: 12,6 kW

- Lamp power consumption 100% range 2: 8,8 kW

- Lamp power consumption 100% range 3 6,3 kW

- Fan: 1,1 kW

- The power of UV radiation at a conveyor speed of 25 m / min: 198 mJ/cm2

ST 1000 Stacker specifications:

- Year: 2008

- Max sheet size: 780 x 1040

- Min sheet size: 290 x 250 mm

- Maximum stack height: 800

- Maximum speed depends on the type of substrate: 4500 cycles/h

- Dimensions: 1300 x 1920 x 1000, 500 kg
