NBG Printographic Machinery STAR 16 cut off 578mm

NBG Printographic Machinery STAR 16 cut off 578mm

Contact us for price

orCall +359 886 155718

Description

Age: 2015

Max.Size: 89 x 58 cm (35 x 22 inch)

Current State: In production


Web offset press 2/2 colors for books printing, model STAR-16

One (1) 2HI Tower Printing Unit with integral reel stand One (1) 1:2 Jaw Type Half Page Folder with Quarter Page (1/4) Folder & Double Parallel Folder (DPF) attachments DC Main drive with Main Motor & Electric Control Panel along with all the interconnecting shafts.

Machine: COLD SET WEB OFFSET PRINTING PRESS

Model: STAR-16

Maximum Speed: 16,000 copies per hour (for A2- Broadsheet & A3-Tabloid Formats)

10,000 copies per hour (for A4 Book Size) 8,000 copies per hour (for A4

Book Size)

Cut-off: 578 mm (22.75”)
Plate Lock-up System: Slit Type
Blanket Lock-up System: T-Bar Maximum Reel Width: 889 mm (35”) Maximum Reel Diameter: 1066 mm (42”)

Paper Grammage Range: 40-80 GSM

(as per the requirement for printing books in A4 & A5 formats)

Suitable for printing 16 Pages Books in A4 size with all Pages in two (2 2) colors OR 32 Pages Pocket Books in A5 size with all Pages in two (2 2) colors with total GSM of the single web not exceeding 80 GSM to ensure proper folding of the books in A4 & A5 sizes in one pass.

1

MACHINE CONFIGURATION

U1 1:2 F1(1/2, 1/4, DPF ) 20 HP ANALOGUE DC DRIVE WITH MAIN DC MOTOR & ELECTRIC CONTROL PANEL

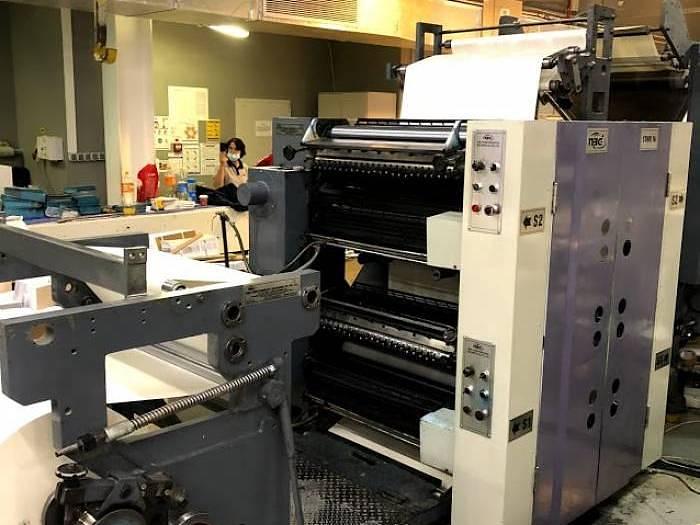

U = 2Hi TOWER PRINTING UNIT WITH INTEGRAL REEL STAND FOR PRINTING TWO COLORS (2 2) ON BOTH SIDES OF THE WEB.

F (1/2, 1/4) 1:2 JAW TYPE HALF (1/2) PAGE FOLDER FOR BROAD SHEET (A2) & TABLOID FOLD (A3).
QUARTER (1/4) PAGE FOLDER ATTACHMENT WITH PERFORATOR ALONG THE FOLDER EDGE FOR A4 (BOOK) SIZE FOLD

DPF = DOUBLE PARALLEL FOLDER ATTACHMENT WITH CROSS PERFORATOR

BILL OF MATERIAL (SCOPE OF SUPPLY) :

1 NO. 2Hi TOWER PRINTING UNIT WITH INTEGRAL REEL STAND, CONSISTING OF:

- Lever type swing-down ink fountain with overrides for ink fountain roller.

- Dynamically-balanced Solid Stainless Steel Plate and Blanket Cylinders.

- Hardened and Ground Bushes for Plate and Blanket Cylinder Sleeves.

- Slit type plate lock-up system.

- T-Bar Blanket lock-up for blanket cylinders.

- Contactless Brushmist Dampening System with brushmist roller covers.

- Manual on/off for ink feed, ink form, dampener feed, dampener form & main impression on/off.

- Manual lateral register on operating side, on the run.

- Safety guards on the inking & dampening sections of the two colors printing unit.

- Centralized oil pressure lubrication for drive gears.

- Normal Wooden Block Brake 1 NO. HALF-PAGE JAW FOLDER CONSISTING OF:
- Jaw type 1:2 Folder
- R.T.F. roller, cutting cylinder and jaw cylinder, dynamically balanced - Former - Single nipping
- Folder jam switch
- Main drive shafts with Thomas coupling at cylinder height for minimum back lash and smooth power transmission. - Manually operated RTF with slitter. - Mechanical kicker
- Adjustable kicker for batches between 10 to 99.
- Centralized oil pressure lubrication for drive gears. - Quarter (1/4) Page Folder Attachment with perforation along the folded edge for books in A4 size to run at a maximum speed of 10,000 copies per hour with one (1) web of maximum 80 GSM. - Double Parallel Folder (DPF) Attachment with a cross perforator for books in A5 size to run at a maximum speed of 8,000 copies per hour with one (1) web of maximum 80 GSM. 1 NO. NORMAL COMPENSATOR FOR CUT-OFF CONTROL ON TOP OF THE 2Hi TOWER PRINTING UNIT FOR RUNNING ONE WEB. 1 NO. INFRA RED WEB BREAK DETECTOR ON THE 2Hi TOWER PRINTING UNIT FOR RUNNING ONE WEB. 1 NO. FLOOR TROLLEY ON WHEELS FOR MOVEMENT OF THE PAPER REELS TO THE 2Hi TOWER PRINTING UNIT

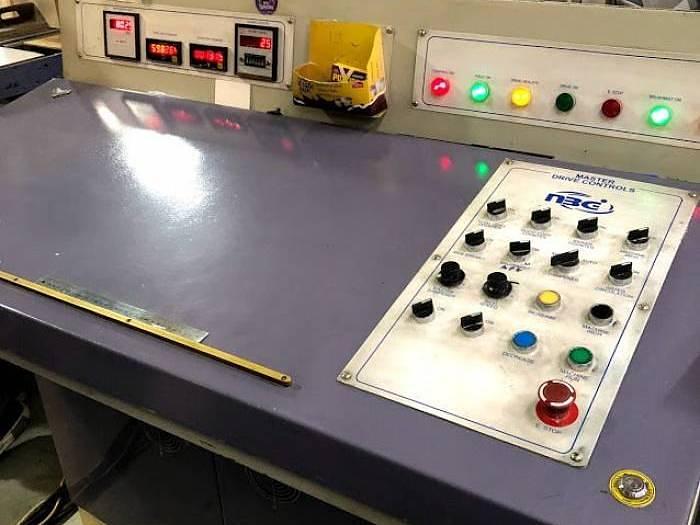

1 NO. INDEPENDENT CENTRAL OPERATING CONSOLE WITH PRESS CONTROLS INCLUDING BRUSHMIST DAMPENING CONTROLS OF THE MACHINE, WITH OVERHEAD LIGHTING LAMP . .

1 SET 20
(INCLUDING
ELECTRIC CONTROL PANEL) 380-440V / 50 Hz / 3 PHASE.

1 SET CENTRALIZED WATER CIRCULATION SYSTEM FOR THE FULL MACHINE WITH WATER TANK, WATER PUMP, PIPING & FITTINGS.

1 SET MANUAL PLATE BENDER (for bending the printing plates) & MANUAL PLATE PUNCH (for punching the printing plates).

1 SET STANDARD SPARES AND ACCESSORIES ALONGWITH CONNECTING PARTS, SPARE PARTS CATALOGUES, OPERATING MANUALS & ELECTRICAL DRAWINGS


Specifications

ConditionUsed
