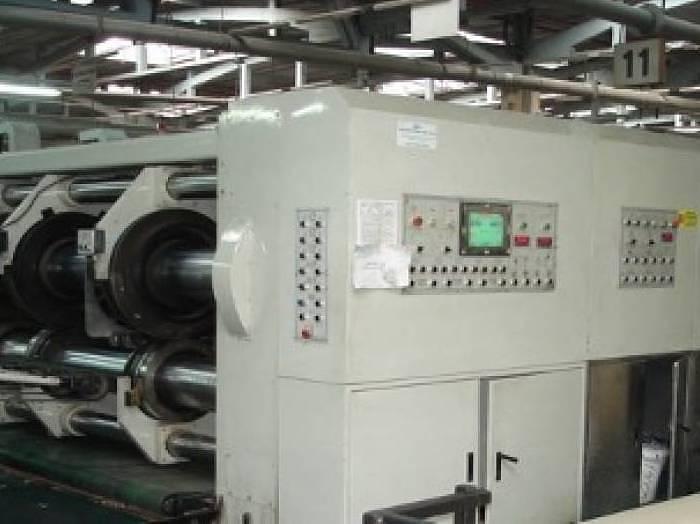

Keshenlong for ICM KYS 4300x2200 2 color slotter (2005)

Keshenlong for ICM KYS 4300x2200 2 color slotter

Machine specifications:

- Feeder

- Flexo 1 and 2

- Slotter with small plate rot. die-cut

- Delivery conveyor

- Stacker

- PRINTING ON TOP

- RUBBER ROLL SYSTEM

- ANILOX ROLLS 100/12

- SKIP FEEDING: 4300X2500 WITH MAX PRINT 4300X2200

- FLUTE TYPE: B,C,BC,EC

- SLOT SIZE 12MM

- PLC SIEMENS

- TOUCH PANELS

- INFEED LIFT TABLE

- Max. production speed: 3600 pc/h

- Average production speed: 1000 pc/h

Production specifications:

- Box size: L - min: 950 mm / max: 4300 mm

- Box size: H - min: 950 mm / max: 4150 mm

- Box size: I - min: 550 mm / max: 2200 mm

- Box size: A=C - min: 400 mm / max: 1870 mm

- Box size: B=D - min: 100 mm / max: 1870 mm

- Box size: B C - min: 600 mm / max: 3740 mm

- Box size: P - max 50 mm
