Autoprint Repetto 80 - automatic sheetfed diec-utting (New)

Autoprint Repetto 80 - automatic sheetfed diec-utting (New)

Contact us for price

Sofia, Bulgaria

orCall +359 886 155718

Description

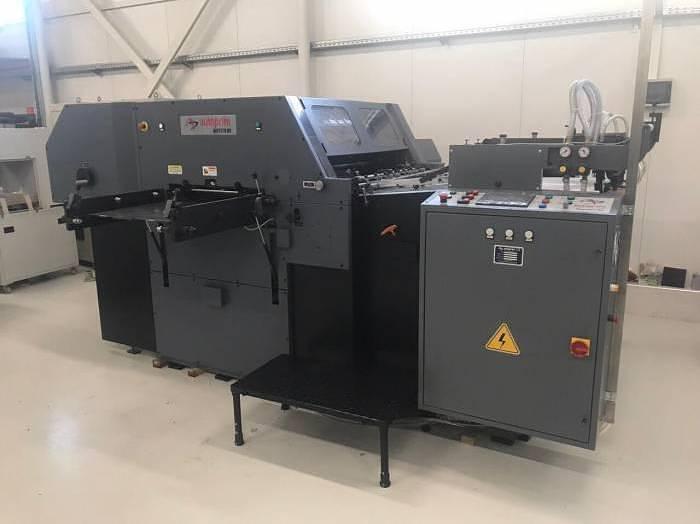

Autoprint Repetto 80 - an Automatic Sheet-fed Flat Bed Die-Punching and Creasing Machine

Maximum Paper Size: 560 x 800 mm (22” x 31.5”)

Minimum Paper Size: 250 x 305 mm (10” x 12”)

Maximum Punching Area: 540 x 790 mm

Paper Thickness: 0.1 to 0.6 mm

Feeder Pile Height: 960 mm

Delivery Pile Height: 825 mm

Punching Speed Max.: 4500 sph

Die Height: 23.8 mm

Gripper Margin Setting: 11 - 14 mm

Punching Load: 180 Ton

Punching Stroke: 70 mm

Total Power: 13.5 Kw (18HP)

Chase Interior Size: 582 x 850 mm

Weight: 8500 Kgs (Approx)

Over all Size (L x W x H): 3600 x 2350 x 1680 mm


Compact machine

Stream feeder

Box type base frame for stability of machine.

Pull type side lay on both sides

Double sheet detector

Cross feed sensor

Safety switch for machine manual drive

High speed PLC based control with digital input / output modules

Automatic switching program

Motorised pile for smooth up and down movement

Pre-pile facility loading by fork lift

Early sheet sensing for minimum wastage

Servo controlled gripper for register control and stacking at delivery

Centralised touch screen control panel with PLC

Software for

Specifications

ConditionUsed
Stock Number66982
Max.size80 x 56 cm (31 x 22 inch)
Impress.countmio
