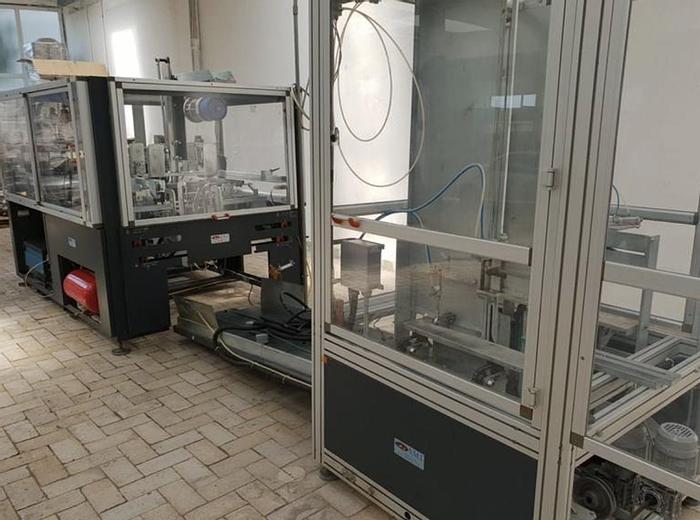

S.M.I GD 25 Forming Cardboard Box Formation Machines Tray plus Stacker S.M.I IM 25

S.M.I GD 25 Forming Cardboard Box Formation Machines Tray plus Stacker S.M.I IM 25

Contact us for price

Sofia, Bulgaria

orCall +359 886 155718

Description

Weights and dimensions

A……………………………………….…2900 mm

B………………………………………….1800 mm

C………………….……………………...2000 mm

Weight.………………………………....1300 Kg


Electric features

Voltage……………………………...380/220 V (on the electric board written)

Frequency……………………………………..50Hz

System.…………………………………… 3P+T+N

Protection level.... ………………………… IP 55

Installed power.. …………………………….7kW

Adsorbed power …………………………… 5kW

Auxiliary voltage …………………………..24 Vcc


Pneumatic features

Maximum alimentation pressure .......…..10 bar

Working pressure …………………………. 6 bar

Minimum pressure....……………………...  4 bar

Air consumption ……………..….882 Nliters/minute (45 trays per min)


Productive features

Maximal production....... ……….45 trays per min





Specifications

ManufacturerS.M.I
ModelGD 25
Year2007
ConditionUsed
Stock Number884089
